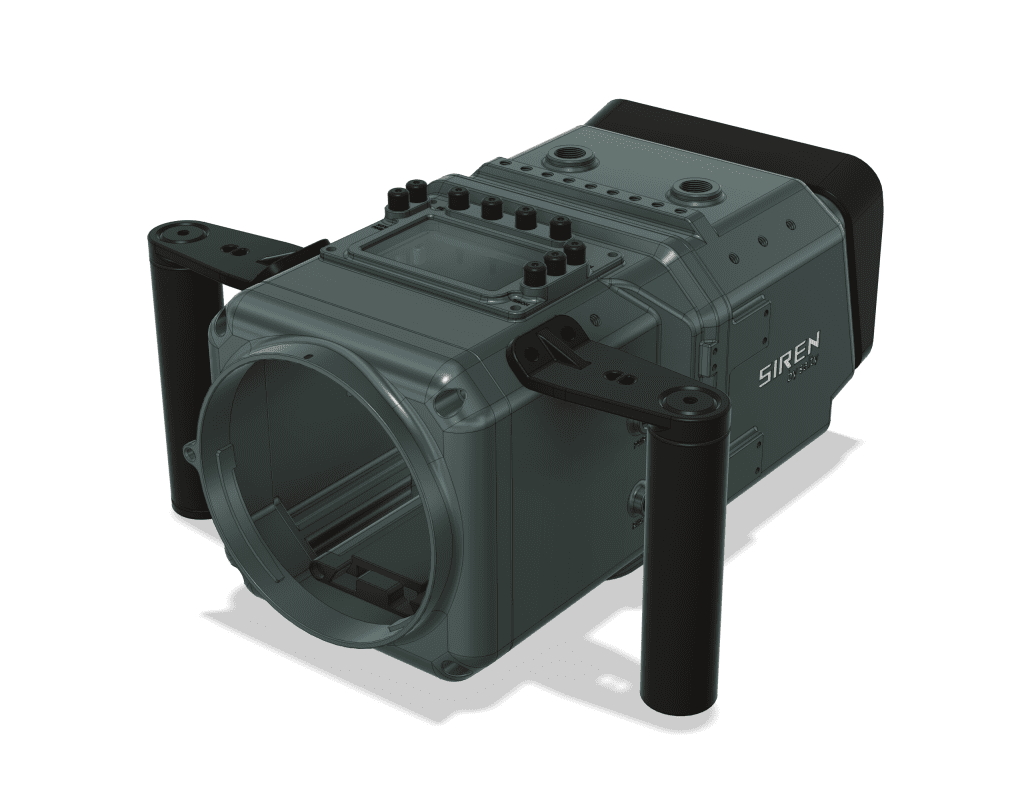

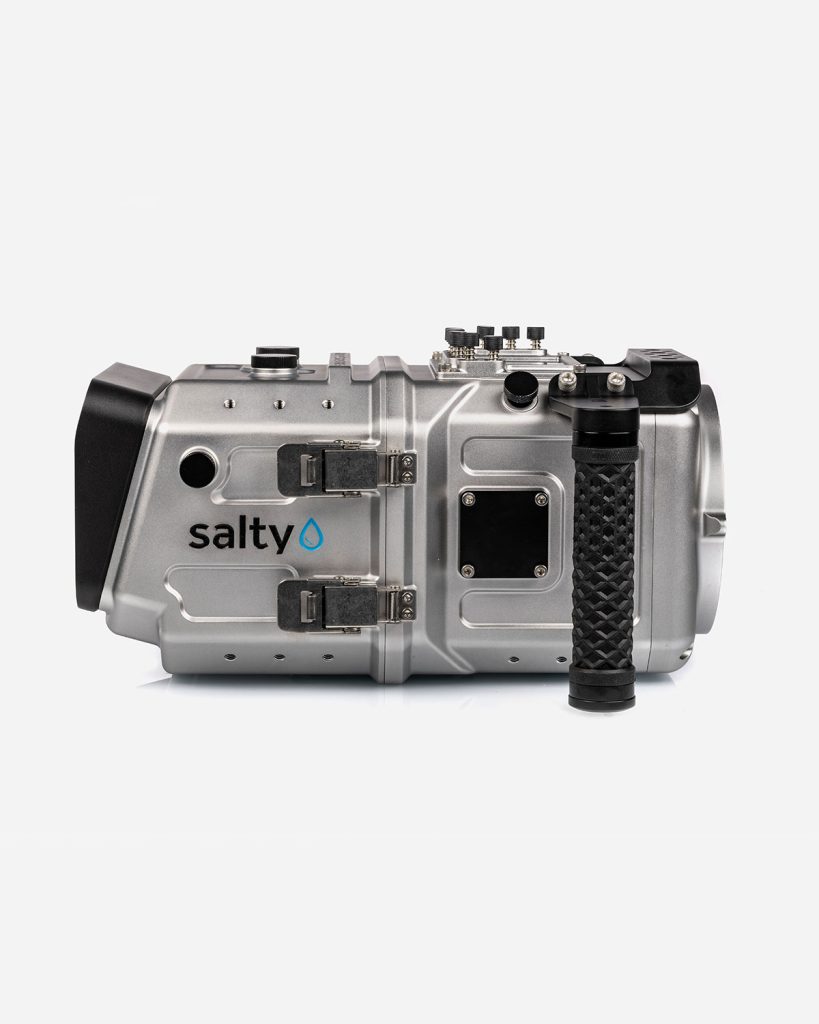

Pixboom Spark Underwater Housing

Full Pixboon Spark control access
CNC-machined aluminum
SIREN XL port system
Rated to 40 m with dome port

Compatible Camera

Our Pixboom Spark housing is designed to work with following configurations:

• Pixboom Spark (any lens mount)
• 1x Micro V-Lock Battery up to 100mm in depth
• OPTIONAL: Portkeys BM5IV (with D-Tap to Lemo Cable)

The housing can be configured with either a ‘Compact’ (no monitor) or with a back to suit the Portkeys BM5IV monitor.

The Compact Back allows for a 40mm shorter housing, ideal for compact remote rigged scenarios, or for use with an external monitor.

Note: the monitor is not included with the monitor back.

Power Configuration

The housing allows for space for a micro V-Lock battery mounted to the back of the camera and/or a battery plate.

The V-Lock battery is not supplied.

Accessible Controls

The housing has full physical control of the camera, including but not limited to:

• ON/OFF Switch
• 2x M16 bulkhead threads

The BM5 monitor back also features controls for:

• ON/OFF Switch

Materials

Housing body: CNC-machined from 6061 billet aluminium
Finish: Grey anodised for corrosion resistance
Buttons & hardware: Marine-grade 316 stainless steel

Weight

Shell only: X kg
With dual side handles and port: ~X kg
Fully rigged with camera and battery: ~X kg

Depth Rating

20 m / 66 ft with flat port
40 m / 133 ft with dome port

Port System

The Pixboom Spark housing is built around the SIREN XL bayonet port system, offering a stackable design for flexible lens configurations and streamlined port changes.

Ports are available separately. Explore the range and refer to the compatibility chart to select the correct configuration for your lens.

Accessories

Our compatible accessories are designed to integrate seamlessly with the SIREN modular system:

Ports & extenders
Side grips
Leashes
Skids & trim weights
Top cheeseplate
