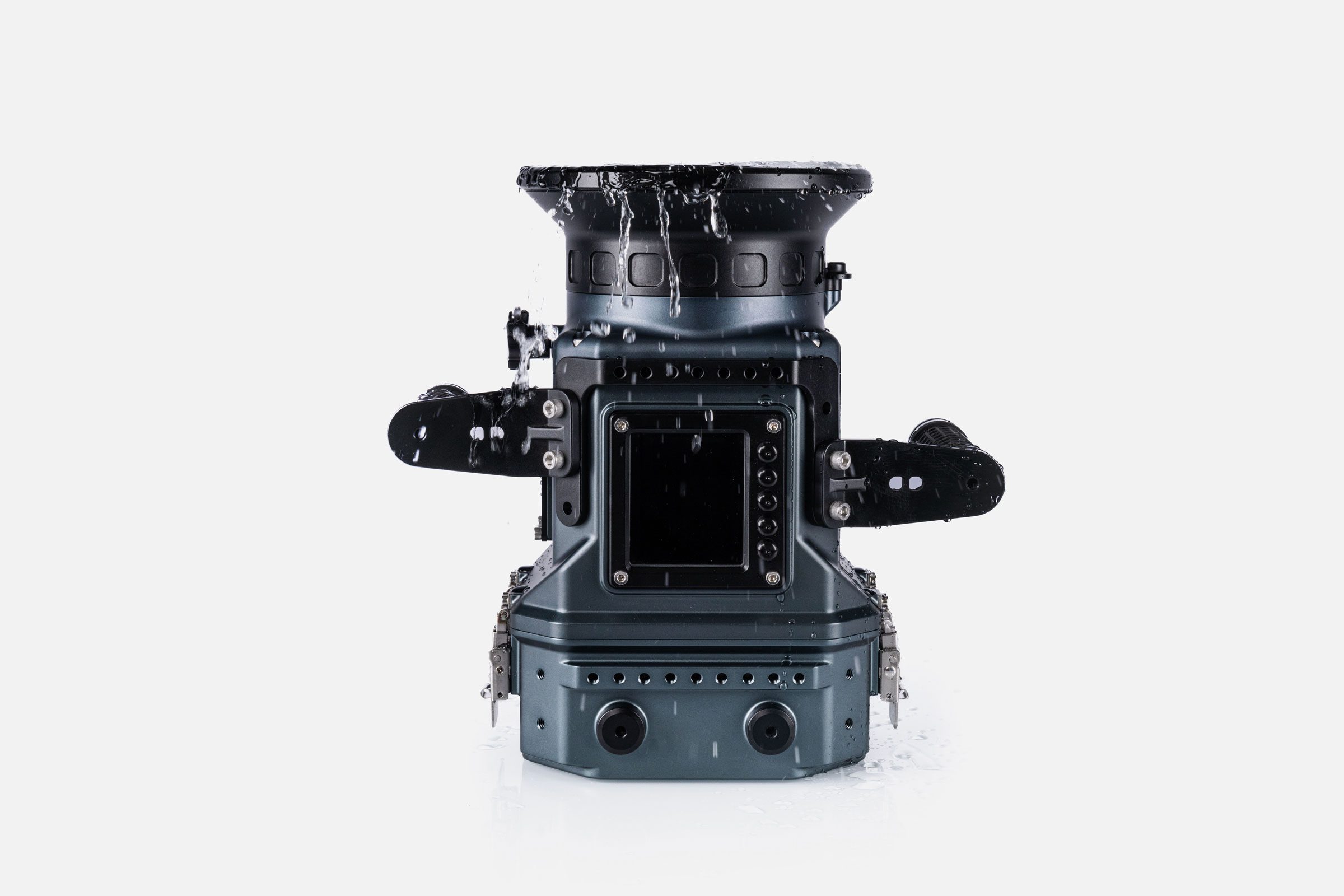

RED KOMODO 6K & KOMODO-X Underwater Housing

Housing Overview

Purpose-built for pro filmmakers, the RED KOMODO-X underwater housing delivers full physical camera control in a rugged, CNC-machined aluminium shell. Compatible with both compact and monitor back configurations, it supports the RED KOMODO-X with a Nano V-mount battery and optional Portkeys BM5 IV monitor.

The housing includes dual Vans ODI side handles and comes standard with the SIREN XL Bayonet Port Front for quick lens swaps. Designed for surf and underwater cinematography, it’s configurable for both KOMODO-X and original KOMODO models.

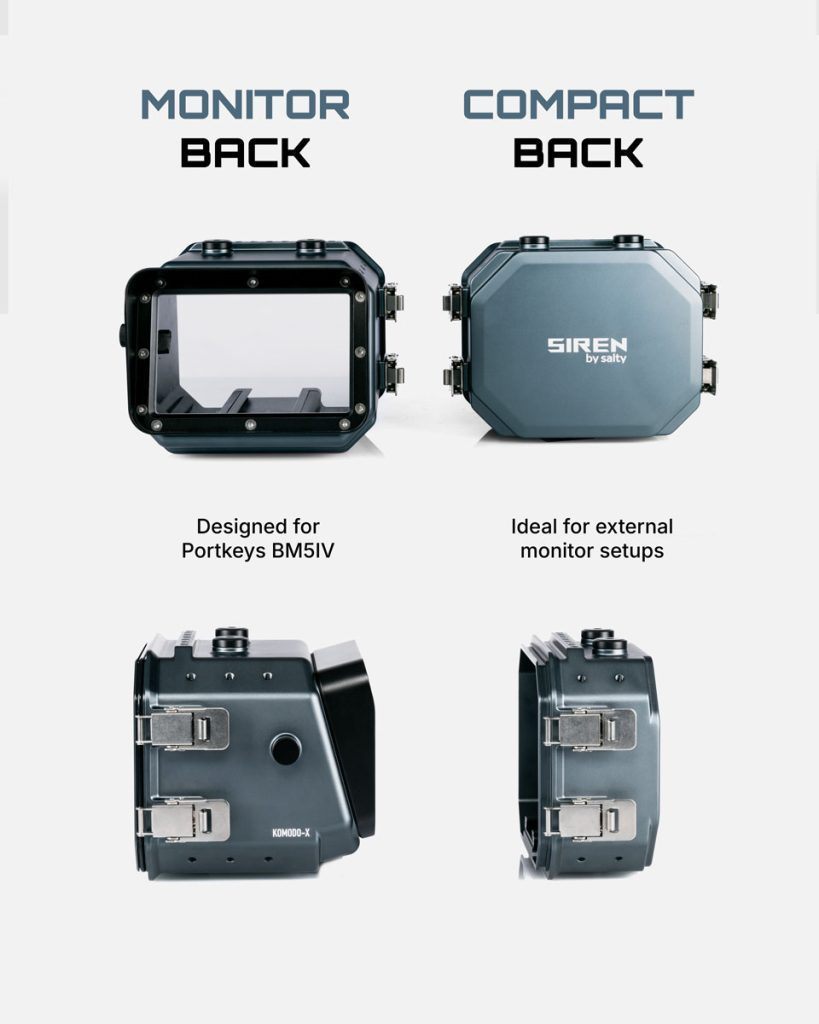

Monitor Back Configuration

Battery: FX Lion Nano 2
Monitor: Portkeys BM5 IV

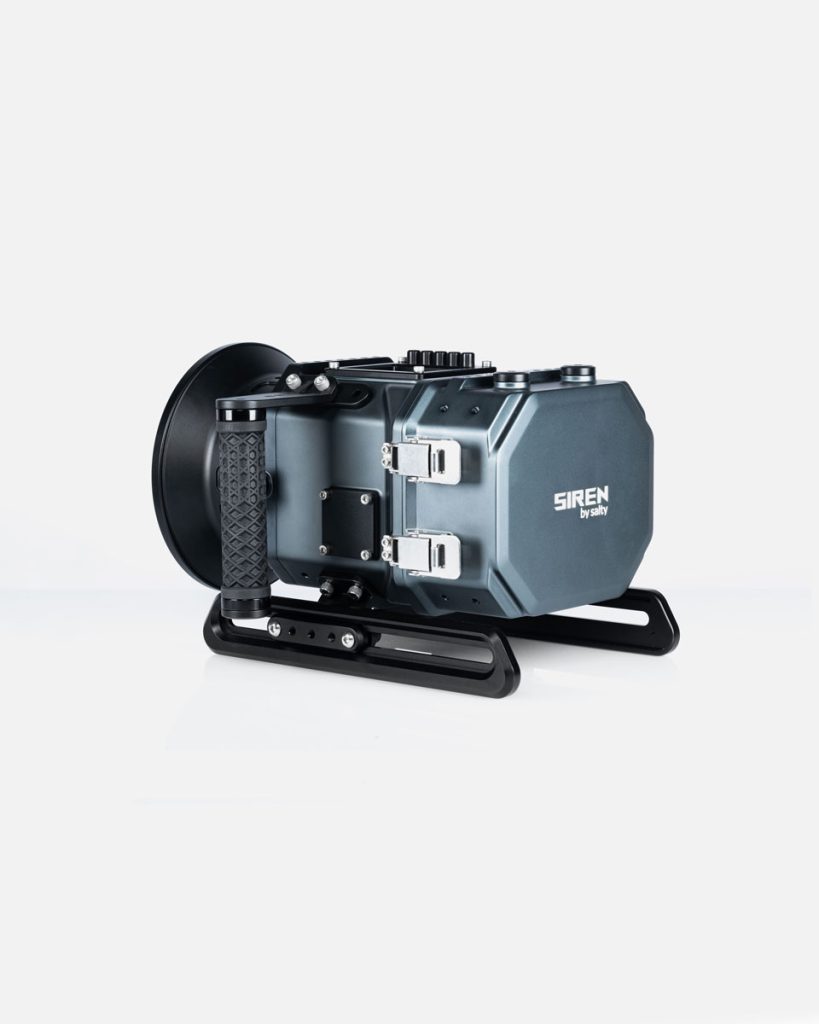

Compact Back Configuration

Battery: FX Lion Nano 2
Monitor: None or External

The housing has full physical control of the camera, including:

• ON/OFF Switch
• MENU
• FORWARD
• BACK
• SELECT
• PLAY
• RECORD
• 2x M16 bulkhead thread

We now also offer a control configuration to suit the original KOMODO camera with an interchangeable control panel.

Materials

Housing body: CNC-machined from 6061 billet aluminium
Finish: Grey anodised for corrosion resistance
Buttons & hardware: Marine-grade 316 stainless steel

Weight

Shell only: 4 kg
With dual side handles and port: ~5 kg
Fully rigged with camera and battery: ~7 kg

Depth Rating

20 m / 66 ft with flat port
40 m / 133 ft with dome port

Port System

The RED KOMODO-X housing is built around the SIREN XL bayonet port system, offering a stackable design for flexible lens configurations and streamlined port changes.

Ports are available separately. Explore the range and refer to the compatibility chart to select the correct configuration for your lens.

It can also be optioned with a Nikonos mount.

Accessories

Our compatible accessories are designed to integrate seamlessly with the SIREN modular system:

Ports & extenders
Side grips
Leashes
Skids & trim weights
Top cheeseplate
